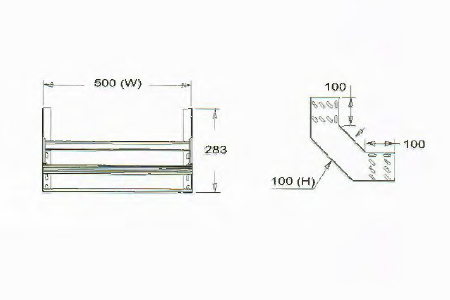

Concave Module
The Concave Module enables inward curved transitions, ensuring secure and efficient cable routing while maintaining support and structural integrity. cable ladders
Technical Data
| Code Description | H | W |
| CLCC 050050 | 50 | 050 |
| CLCC 050100 | 50 | 100 |
| CLCC 050150 | 50 | 150 |
| CLCC 050200 | 50 | 200 |
| CLCC 050250 | 50 | 250 |
| CLCC 050300 | 50 | 300 |
| CLCC 050350 | 50 | 350 |
| CLCC 050400 | 50 | 400 |
| CLCC 050450 | 50 | 450 |
| CLCC 050500 | 50 | 500 |
| CLCC 050600 | 50 | 600 |
| CLCC 050700 | 50 | 700 |
| CLCC 050800 | 50 | 800 |
| CLCC 075100 | 75 | 100 |
| CLCC 075150 | 75 | 150 |
| CLCC 075200 | 75 | 200 |
| CLCC 075250 | 75 | 250 |
| CLCC 075300 | 75 | 300 |
| CLCC 075350 | 75 | 350 |
| CLCC 075400 | 75 | 400 |
| CLCC 075450 | 75 | 450 |
| CLCC 075500 | 75 | 500 |
| CLCC 075600 | 75 | 600 |
| CLCC 075700 | 75 | 700 |
| CLCC 075800 | 75 | 800 |
| CLCC 100100 | 100 | 100 |
| CLCC 100150 | 100 | 150 |
| CLCC 100200 | 100 | 200 |
| CLCC 100250 | 100 | 250 |
| CLCC 100300 | 100 | 300 |
| CLCC 100350 | 100 | 350 |
| CLCC 100400 | 100 | 400 |
| CLCC 100450 | 100 | 450 |
| CLCC 100500 | 100 | 500 |
| CLCC 100600 | 100 | 600 |
| CLCC 100700 | 100 | 700 |
| CLCC 100800 | 100 | 800 |
| CLCC 125150 | 125 | 150 |
| CLCC 125200 | 125 | 200 |
| CLCC 125250 | 125 | 250 |
| CLCC 125300 | 125 | 300 |
| CLCC 125350 | 125 | 350 |
| CLCC 125400 | 125 | 400 |
| CLCC 125450 | 125 | 450 |
| CLCC 125500 | 125 | 500 |
| CLCC 125600 | 125 | 600 |
| CLCC 125700 | 125 | 700 |
| CLCC 125800 | 1215 | 800 |
| CLCC 150200 | ‘150 | 200 |
| CLCC 150250 | 150 | 250 |
| CLCC 150300 | 150 | 300 |
| CLCC 150350 | 150 | 350 |
| CLCC 150400 | 150 | 400 |
| CLCC 150450 | 150 | 450 |
| CLCC 150500 | 150 | 500 |
| CLCC 150600 | 150 | 600 |
| CLCC 150700 | 150 | 700 |
| CLCC 150800 | 150 | 800 |
| Ordering code( Example) | Code description | CLXO 050050 N P 1,5 G |
| Type | Normal Type Cable Ladder | Flanged Type Cable Ladder |
| Perforated / Solid | Perforated | Solid |
| Thickness | (1.0 – 1.25 – 1.5 – 2.0) |
