HIGHBAY LIGHT FIXTURE / AHB 101

التصنيف: Industrial light

A high effeciency / low maintenance cost LED highbay available in different lumen packages to fit all applications. This fixrure is a replacement for tradational metal-halide highbays.
• Housing made from pure aluminum type 6063 coated with electrostatic finish RAL
• Clear diffuser made from PMMA with protection IP 66
• IP 68 PVC cable gland
• Galvanized 8 mm steel hanger
• IP 68 cable gland connector to insure no condensation
• Stainless steel screws

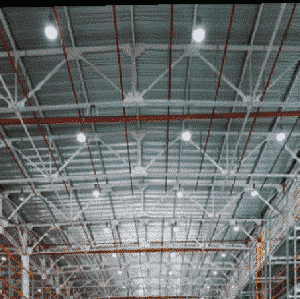

Application

Industrial areas
Sport halls or Gymnasium Stores
Stores

Lighting Specification

Code	LED Brand	CRI	LED Lumen Output	Watt	CCT	Operating Temperature	Beam Angle	Dimentions “D”,”H”
AHB101-100	Nichia	80	13600	100	3000 K – 4000 K – 5700 K	25/ +45	60-90	D=262, H=455
AHB101-150	Nichia	80	20400	150	3000 K – 4000 K – 5700 K	25/ +45	60-90	D=262, H=455
AHB101-200	Nichia	80	27200	200	3000 K – 4000 K –	25/ +45	60-90	D=262, H=455
