Flexible Vertical Adjustment

Flexible Vertical Adjustment

Category: Cable Trays

Description
Technical Data

Technical Data

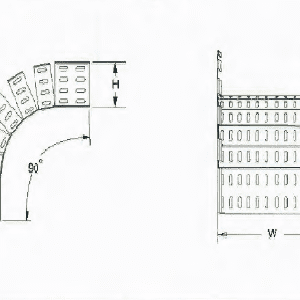

Code Description	H	W
CTFC 050050	50	050
CTFC 050100	50	100
CTFC 050150	50	150
CTFC 050200	50	200
CTFC 050250	50	250
CTFC 050300	50	300
CTFC 050350	50	350
CTFC 050400	50	400
CTFC 050450	50	450
CTFC 050500	50	500
CTFC 050600	50	600
CTFC 050700	50	700
CTFC 050800	50	800
CTFC 075100	75	100
CTFC 075150	75	150
CTFC 075200	75	200
CTFC 075250	75	250
CTFC 075300	75	300
CTFC 075350	75	350
CTFC 075400	75	400
CTFC 075450	75	450
CTFC 075500	75	500
CTFC 075600	75	600
CTFC 075700	75	700
CTFC 075800	75	800
CTFC 100100	100	100
CTFC 100150	100	150
CTFC 100200	100	200
CTFC 100250	100	250
CTFC 100300	100	300
CTFC 100350	100	350
CTFC 100400	100	400
CTFC 100450	100	450
CTFC 100500	100	500
CTFC 100600	100	600
CTFC 100700	100	700
CTFC 100800	100	800
CTFC 125150	125	150
CTFC 125200	125	200
CTFC 125250	125	250
CTFC 125300	125	300
CTFC 125350	125	350
CTFC 125400	125	400
CTFC 125450	125	450
CTFC 125500	125	500
CTFC 125600	125	600
CTFC 125700	125	700
CTFC 125800	125	800
CTFC 150200	150	200
CTFC 150250	150	250
CTFC 150250	150	250
CTFC 150300	150	300
CTFC 150300	150	300
CTFC 150350	150	350
CTFC 150350	150	350
CTFC 150400	150	400
CTFC 150400	150	400
CTFC 150450	150	450
CTFC 150450	150	450
CTFC 150500	150	500
CTFC 150600	150	600
CTFC 150700	150	700
CTFC 150700	150	700
CTFC 150800	150	800

Ordering code ( Example)	Code description	CTFC 050050	C p 1,5 G
Type	C. Type Cable Tray	Flanged Type Cable Tray	Normal Type Cable Tray
Perforated / Solid	Perforated	solid
Thickness	(1.0 – 1.25 – 1.5 – 2.0 )
